¶ 1. Loop backup
¶ 1) Ethernet port Backup Solution

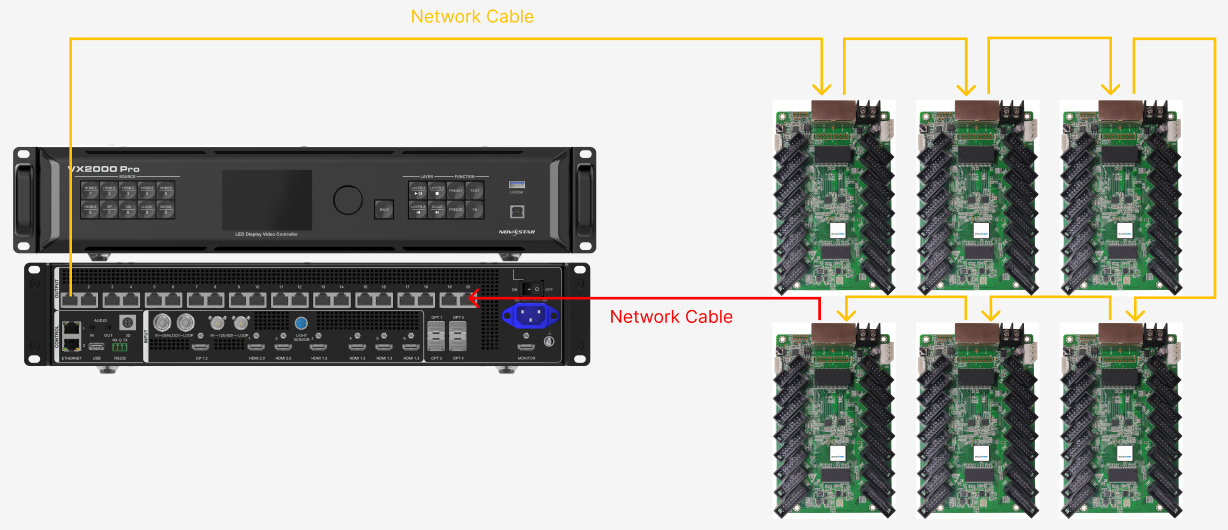

The signal originates from one sending card, with receiving cards connected to each other via network cables. The last receiving card connects back to the sending card through another network port, forming a loop.
Ⅰ. NovaLCT

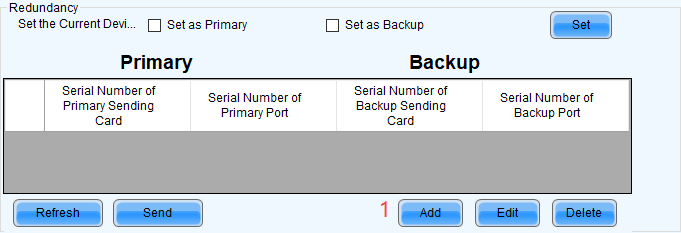

Screen Configuration→Sending Card→Redundency→Add→Save
*Device backup and ethernet port backup are mutually exclusive, only one can be configured at a time.
*Hot backup verification is applicable to MCTRL 4K and MCTRL R5.
Ⅱ. VMP
For details, please refer to the COEX Wiki.
¶ 2) Device Backup Solution
