3.4 Screen Settings
3.4.1 Adjust Image Quality

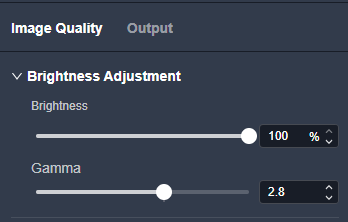

3.4.1.1 Adjust Brightness and Gamma
Adjust the Gamma value and brightness of the output to enhance the overall image quality of the LED screen

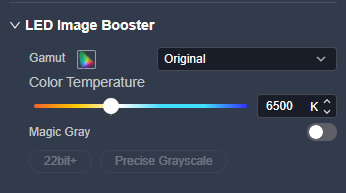

3.4.1.2 Set LED Image Booster
Applicable Products: VX400 Pro, VX600 Pro, VX1000 Pro, VX2000 Pro

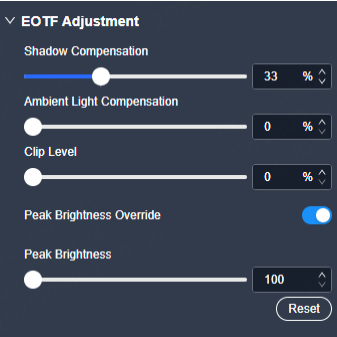

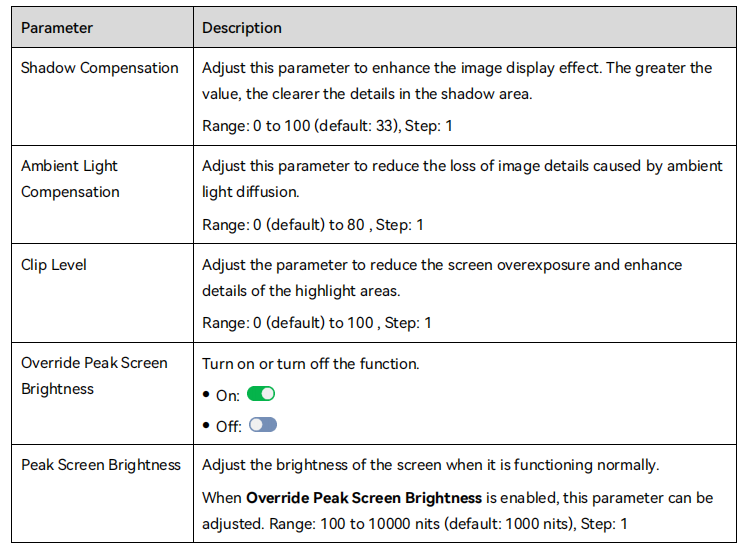

3.4.1.3 Adjust EOTF
Applicable Products: VX2000 Pro
3.4.2 Adjust Output

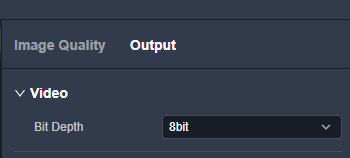

3.4.2.1 Set Output Bit Depth
Applicable Products: VX2000 Pro
When you use the HDR function, setting output bit depth to 10bit is required to achieve optimal display effect
3.4.2.2 Configure 3D
Prerequisites
- Video source format: Side-by side, top-and-bottom or frame sequential
- When paired with the EMT200 Pro, it is recommended to use a 3D source of 60Hz to enjoy an optimal experience.
Notes
- When the 3D function is enabled and the video source format is Side-by-Side or Top-andBottom, the device output capacity will be halved.
- When the 3D function is enabled and the video source format is Frame Sequential, you need to manually set the output frame rate which must be the same as the input frame rate.
- The 3D function and input cropping cannot be enabled at the same time.
- After enabling the 3D function on the Screen Settings page, 3D switches of all the layers will be toggled on. If you want to use a 2D layer, please toggle off the 3D switch of the desired layer in the property area of the Programming page.
The 3D effect follows the layer. The output area where a 3D layer is located always displays the 3D effect

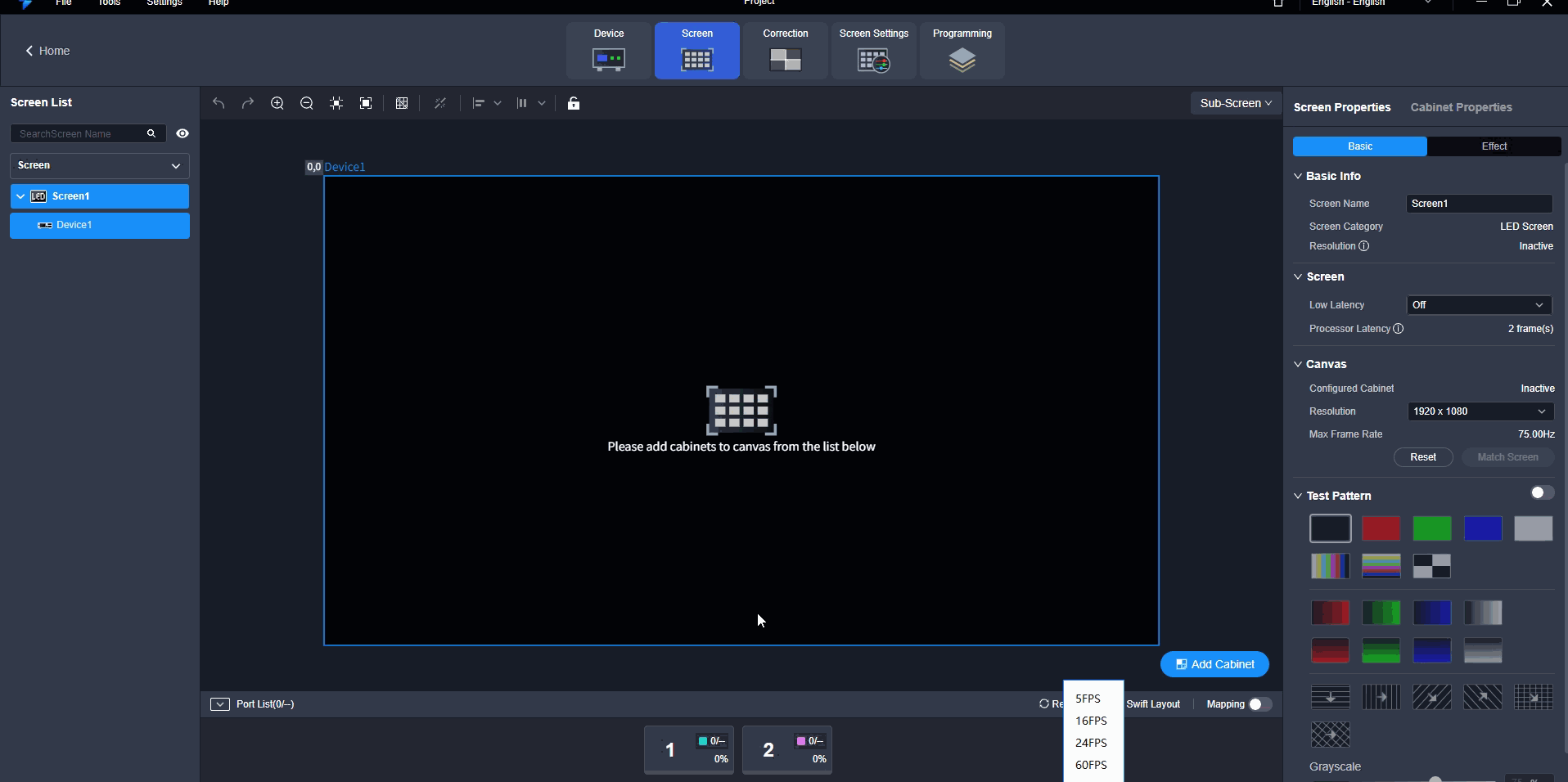

3.4.2.3 Check Load
Check the capacity usage of each Ethernet port of the device.
3.5 Layer Operations

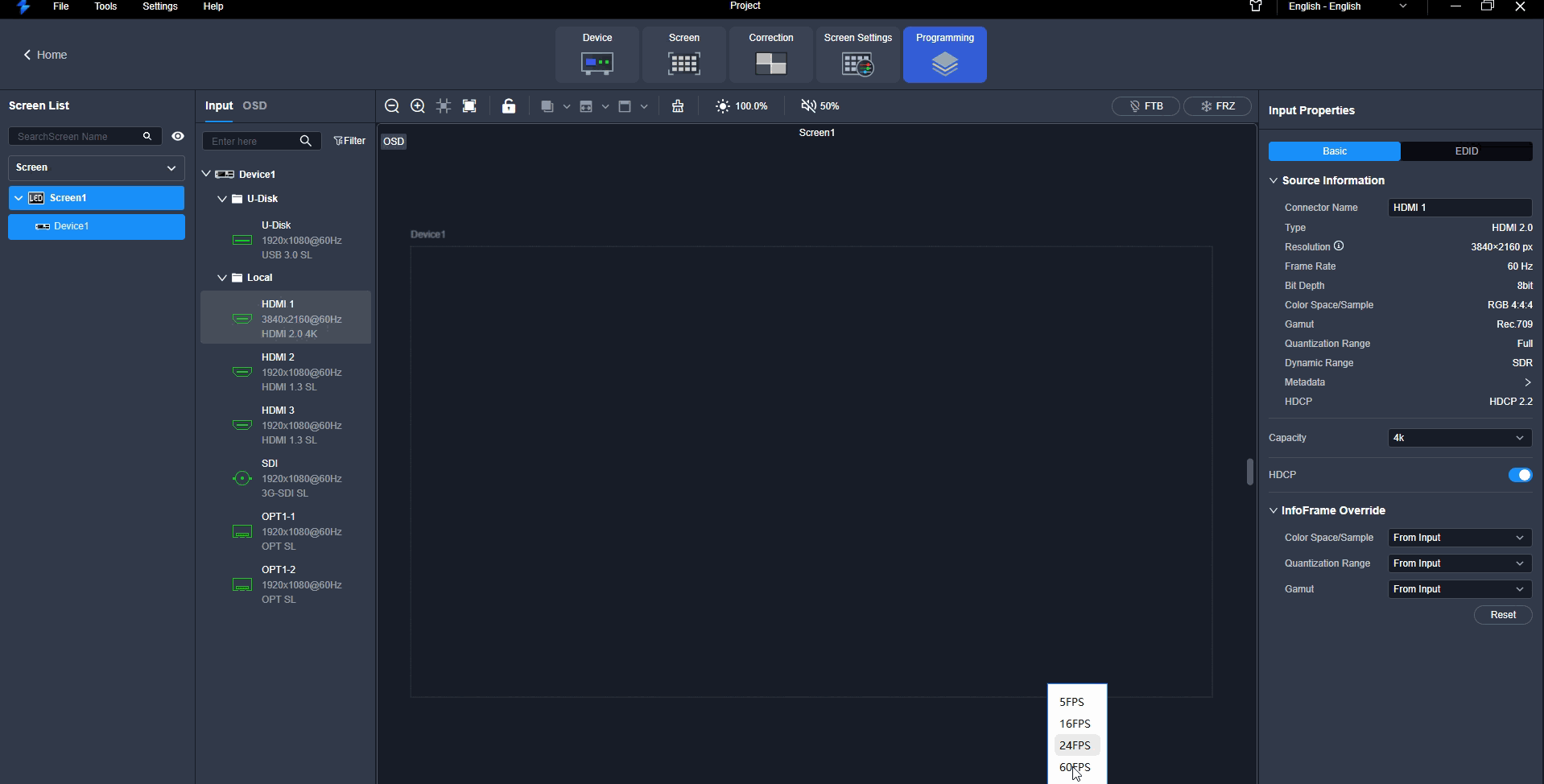

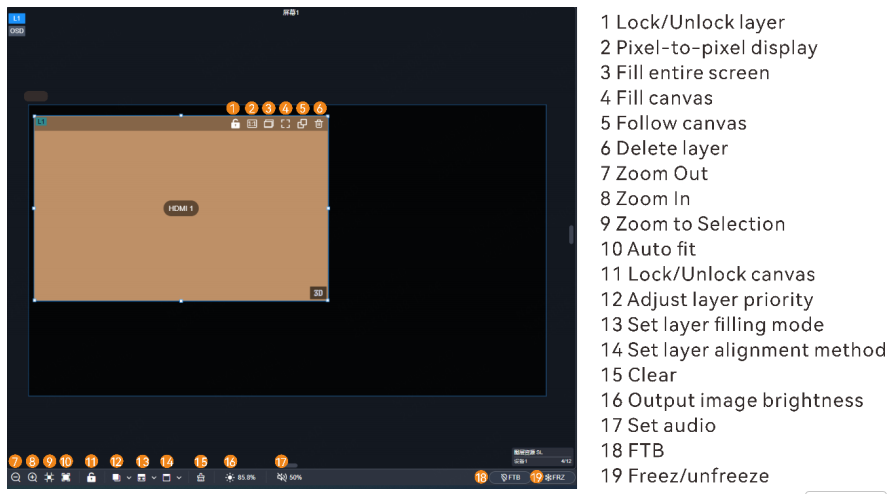

3.5.1 Add Layers
Make sure the device is in Video Controller mode before adding layers.
The maximum number of layers that can be added depends on the connected device.
3.5.2 Configure Video Source Properties
3.5.3 Mosaic Source Settings
Both HDMI and OPT sources support mosaicing.
3.5.3.1 View Mosaic Source Info
Applicable Products: VX2000 Pro
Prerequisites: A mosaic source has been configured and its signal is fine.

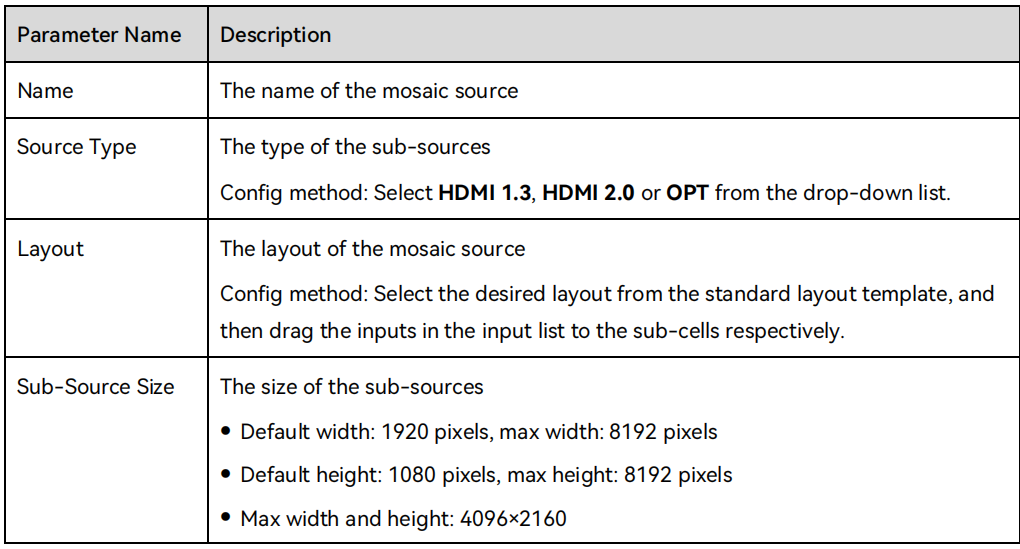

3.5.3.2 Configure Mosaic Sources
3.5.4 Configure USB Source Properties
Select a USB source in the input list and configure relevant properties on the USB Playback Settings tab interface.

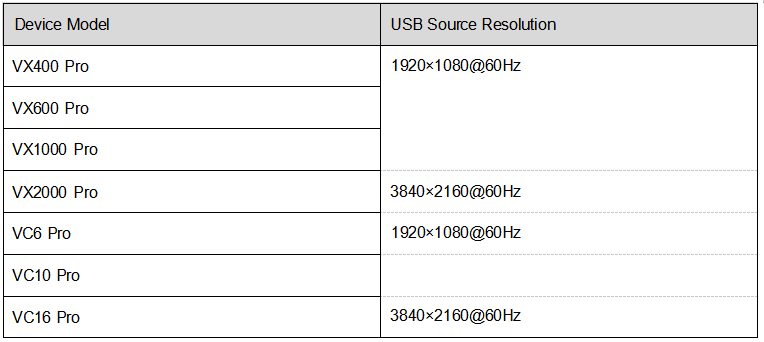

The models of devices that support USB playback and the corresponding output resolutions for USB sources are listed below.

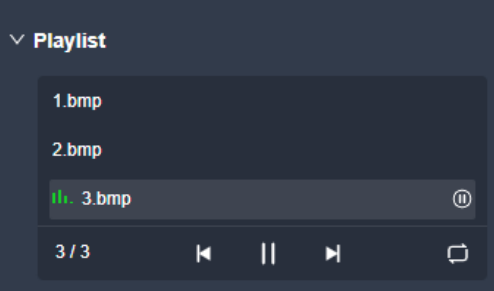

3.5.4.1 Play USB Files
The U-DISK connector on the front panel is inserted with a USB drive which is successfully identified.

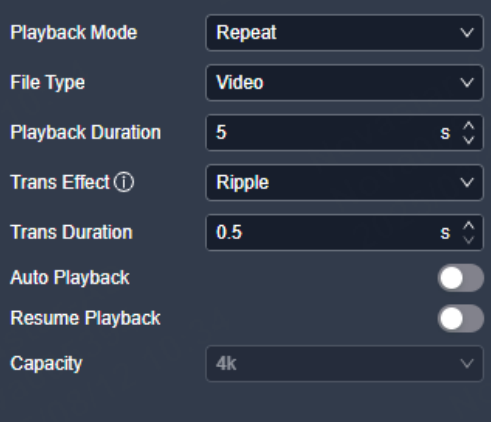

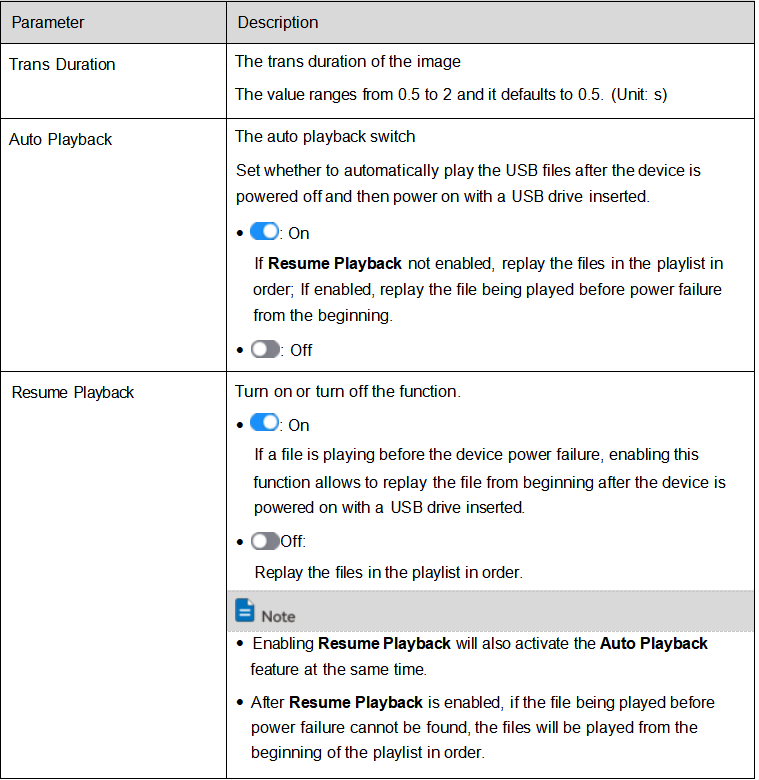

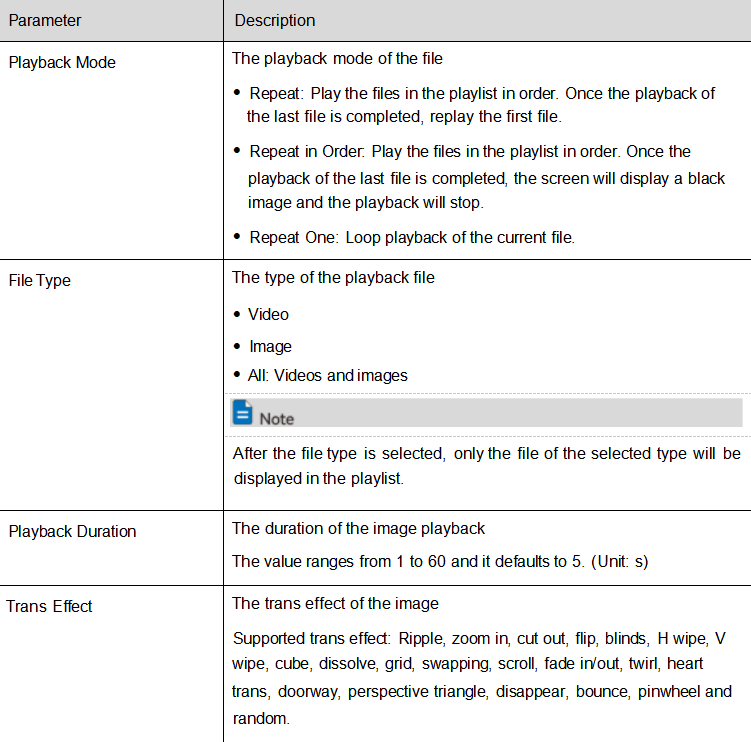

3.5.4.2 Configure Playback Parameters
Prerequisites: The U-DISK connector on the front panel is inserted with a USB drive which is successfully identified.
Notes
- Single-partition USB drive supported
- File system: NTFS, FAT32 and exFAT
- Max. width and height of media files
- Width: 3840 pixels, height: 2160 pixels
- Picture format: jpg, jpeg, png and bmp
- Decoded image resolution: 3840×2160 or lower
- Video format: mp4, mkv, mov, avi, flv, m4v, mpg, mpeg, ts
- Video coding: H.264, H.265, MPEG-2, MPEG-4
- Max. video frame rate:
H.264: 3840×2160@30fps, H.265: 3840×2160@60fps
MPEG-2/MPEG-4: 1920×1080@60fps
- Max bitrate:
H.264/H.265: 100Mbps
MPEG-2/MPEG-4: 50Mbps
- Audio coding: AAC, AC3, DTS, MP3, DVD, DVD_LPCM, MP2, OPUS
- Audio sampling rate: opus: 24kHz, 48kHz
Other formats: 22.05kHz to 94kHz

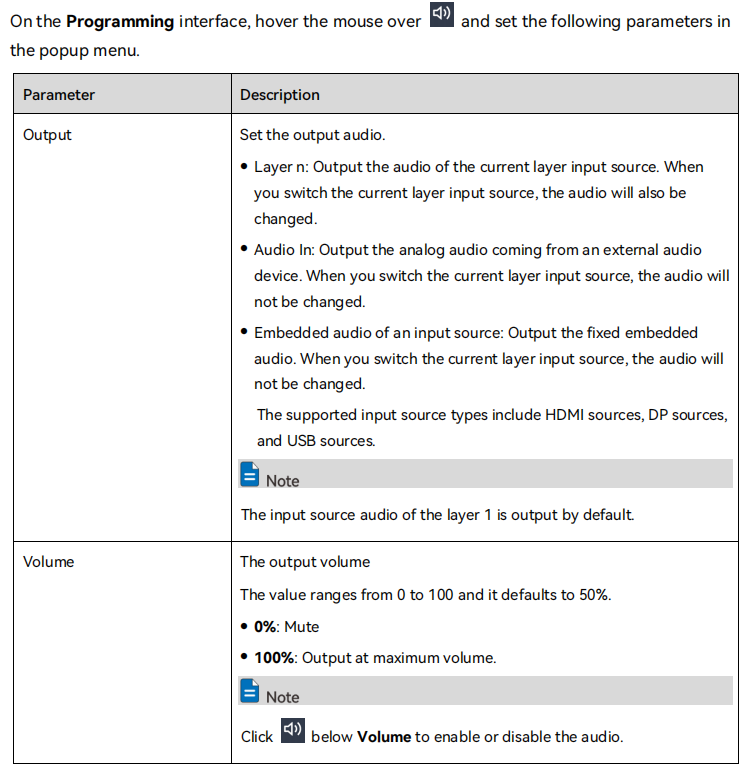

3.5.5 Set Audio

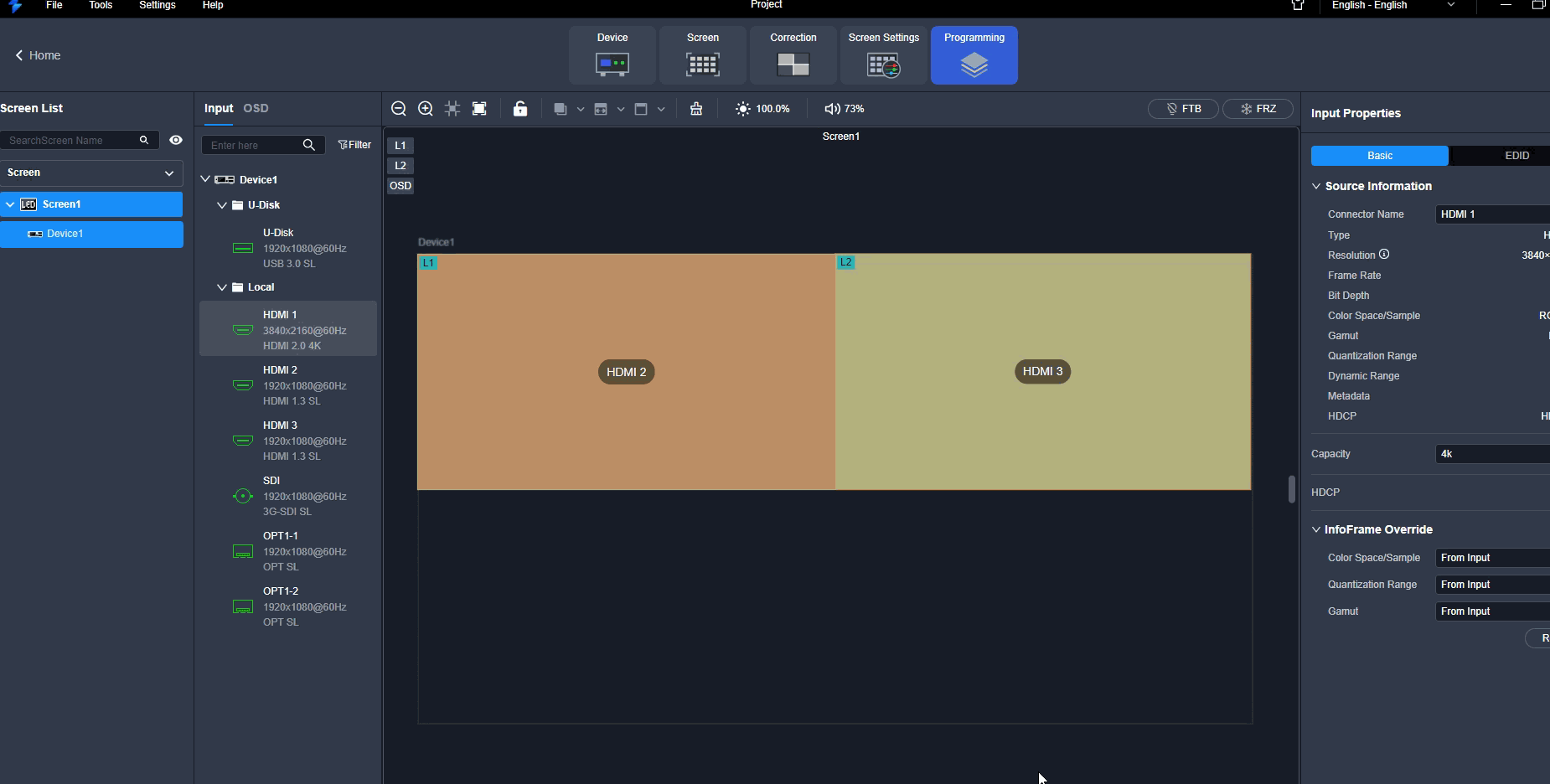

3.5.6 Set Input Source Audio
On the Programming interface, click the Input tab to display the input source list. Hover the mouse over the desired input source and click . In the popup menu, set the input source audio to Embedded Audio or Audio In.
3.5.7 Configure Layer Properties
Select the desired layer, and then set the layer-related properties in the property area on the right pane.

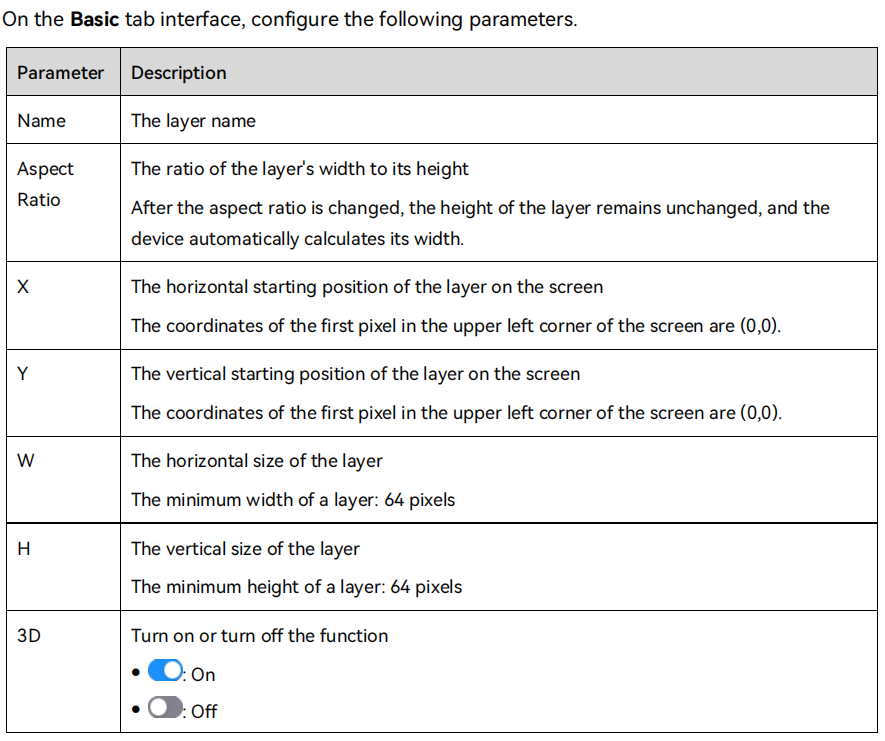

3.5.7.1 Configure Basic Properties
Configure the layer name, aspect ratio, position, size, as well as enabling the 3D effect.
After enabling the 3D function on the Screen Settings page, 3D switches of all the layers will be toggled on. If you want to use a 2D layer, please toggle off the 3D switch of the desired layer in the property area of the Programming page.

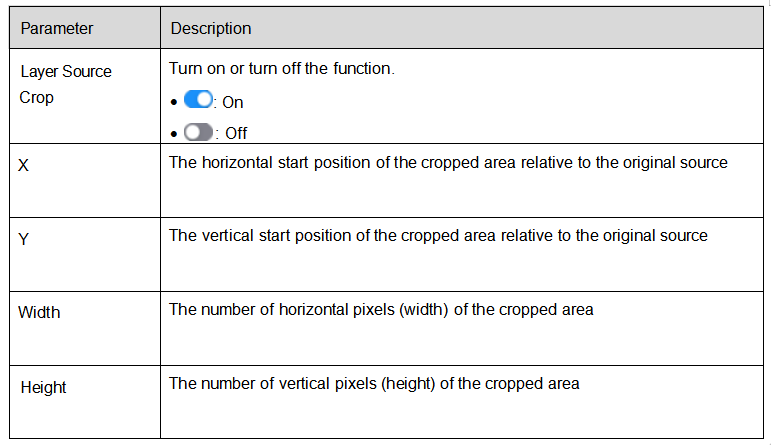

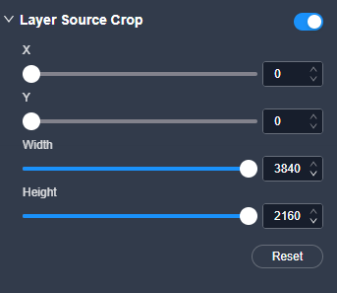

3.5.7.2 Crop Layer Sources
Prerequisites: A fine signal is connected to the input connector.
Notes:
- The status and capacity of the cropped source remain consistent with the original one.
- The input cropping and 3D functions cannot be enabled at the same time.

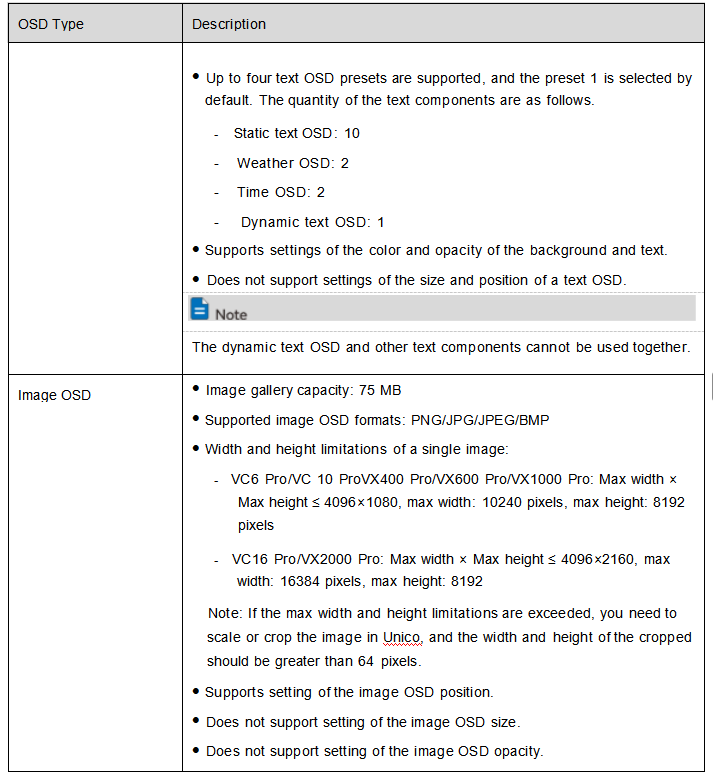

3.5.8 Configure OSD
Both the text OSD and image OSD are supported.
Prerequisites: Before setting a time OSD or weather OSD, please ensure that the device is connected to the network to obtain the precise time and weather information.
Notes
- The OSD locates at the top and its priority cannot be adjusted.
- The text OSD and image OSD cannot be enabled together.
- The OSD function and remote control function cannot be enabled together.
3.5.8.1 Configure Text OSD
Step 1 In the screen list on the left, select the desired screen.
Step 2 Click the OSD tab.
Step 3 Toggle the OSD switch to enable the OSD function.

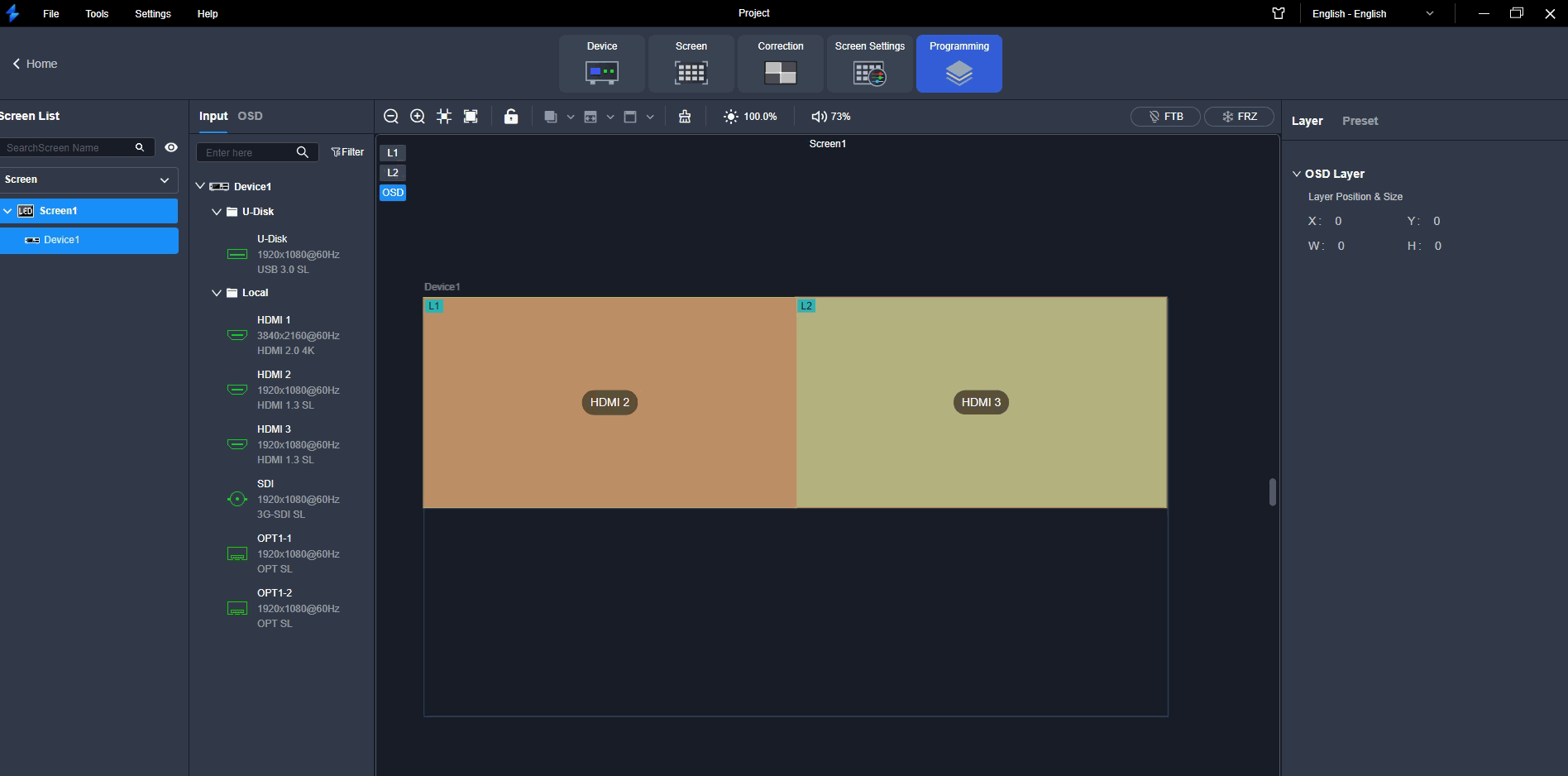

3.5.8.2 Configure Image OSD
Step 1 In the screen list on the left, select the desired screen.
Step 2 Click the OSD tab.
Step 3 Toggle the OSD switch to enable the OSD function

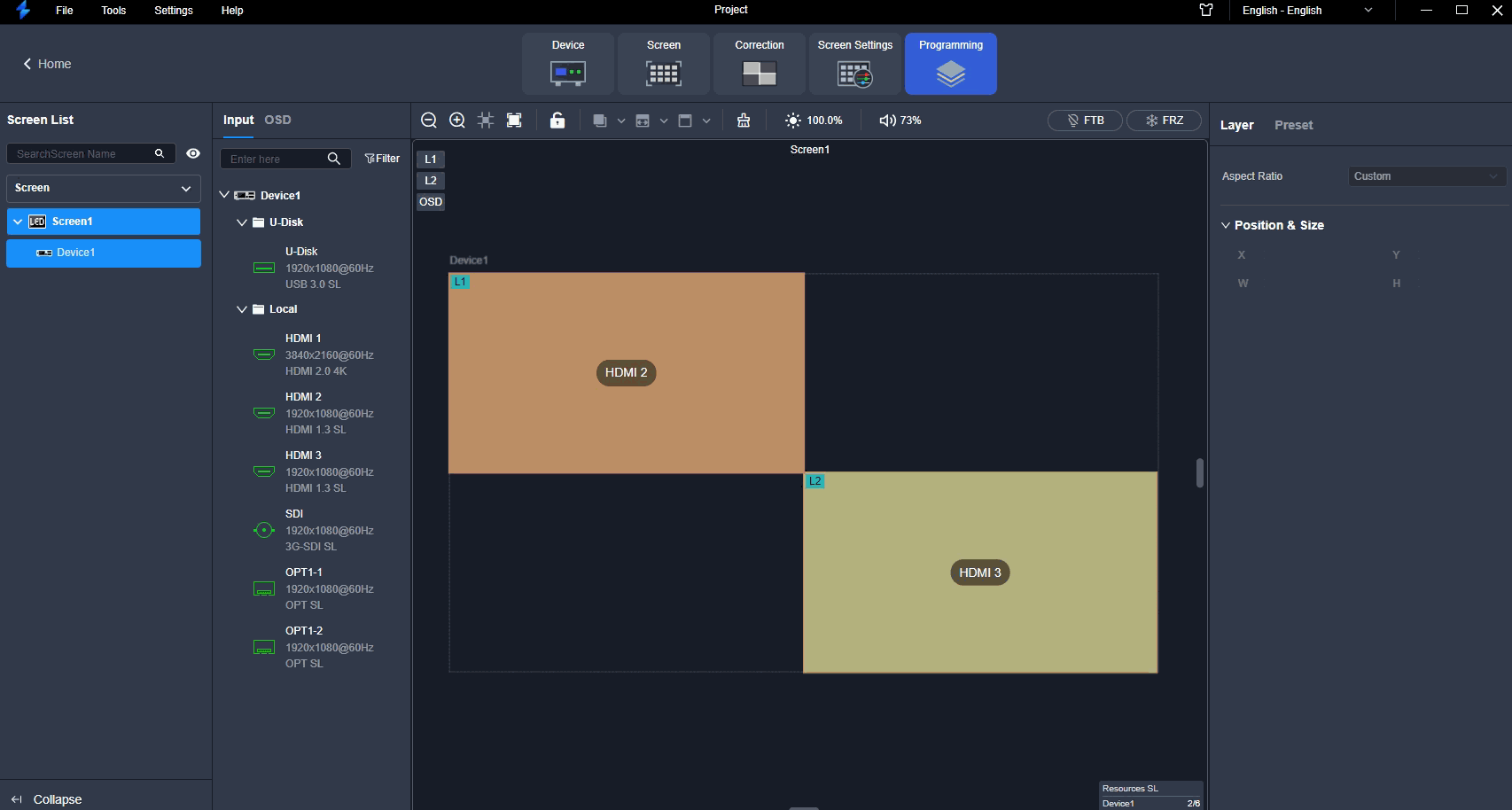

3.5.9 Manage Presets
To manage the presets, click Preset on the right side of the Programming interface and perform the corresponding actions as needed
